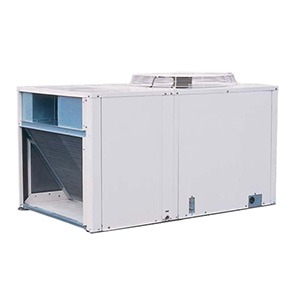

10HP Floor Standing Air Conditioner

//10HP Floor Standing Air Conditioner
  • standing air con purchase buy

10HP Floor Standing Air Conditioner

Indoor unit power supply: 220-240V, 1PH~, 50Hz

Model No:MFA3T-96CRN1
Cooling capacity (T1/T3): 96000 / 87860 Btu/h; 28.1 / 25.75 kW
Cooling input (T1/T3): 9.6 / 15 kW
Cooling EER (T1): 2.93W/W

Max power input: 0.7 kW (IDU)
Max current: 3.0 A (IDU)
Airflow (Hi): 4800 m³/h
Noise level: 56 dB(A)
Fan type/ Drive type: Centrifugal / Direct
Coil: Copper tube and aluminum fin
Controller: Remote controller

Net Dimension: 1200 x 1860 x 518 mm
Net / Gross weight: 140/ 154 kg



Outdoor unit power supply: 380-415V, 3PH~, 50Hz
Max power input: 14.4 kW (ODU)
Max current: 23.7 A (ODU)
Airflow (Hi): 12500m³/h
Noise level: 68 dB(A)
Compressor (Type/ Quantity): Scroll/ 1
Refrigerant (Type/ Charged): R410A/ 6.0kg
Fan type/ Drive type: Axial/ Direct
Coil: Copper tube and aluminum fin
Refrigerant piping size: Φ9.52 (Liquid), Φ25 (Gas)
Ambient temperature: 17~52
Net Dimension: 1312 x 919 x 658 mm
Net / Gross weight: 168/ 183 kg

Product Description

Air Con Gallery

Indoor unit power supply: 220-240V, 1PH~, 50Hz

Model No:MFA3T-96CRN1
Cooling capacity (T1/T3): 96000 / 87860 Btu/h; 28.1 / 25.75 kW
Cooling input (T1/T3): 9.6 / 15 kW
Cooling EER (T1): 2.93W/W

Max power input: 0.7 kW (IDU)
Max current: 3.0 A (IDU)
Airflow (Hi): 4800 m³/h
Noise level: 56 dB(A)
Fan type/ Drive type: Centrifugal / Direct
Coil: Copper tube and aluminum fin
Controller: Remote controller

Net Dimension: 1200 x 1860 x 518 mm
Net / Gross weight: 140/ 154 kg

Outdoor unit power supply: 380-415V, 3PH~, 50Hz
Max power input: 14.4 kW (ODU)
Max current: 23.7 A (ODU)
Airflow (Hi): 12500m³/h
Noise level: 68 dB(A)
Compressor (Type/ Quantity): Scroll/ 1
Refrigerant (Type/ Charged): R410A/ 6.0kg
Fan type/ Drive type: Axial/ Direct
Coil: Copper tube and aluminum fin
Refrigerant piping size: Φ9.52 (Liquid), Φ25 (Gas)
Ambient temperature: 17~52
Net Dimension: 1312 x 919 x 658 mm
Net / Gross weight: 168/ 183 kg
